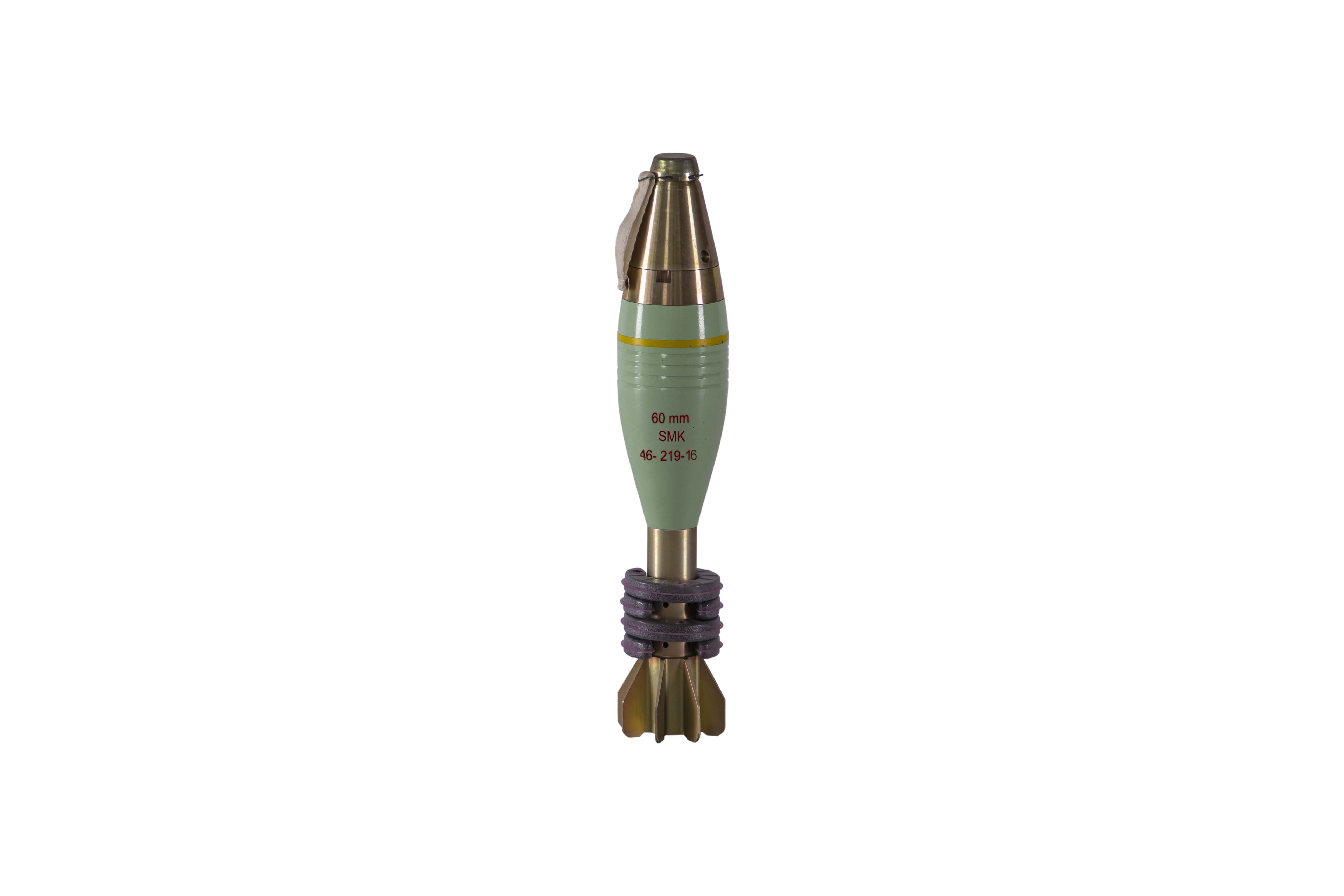

60 mm Mortar Smoke Round
60 mm mortar smoke round is designed to create smoke screen, causes fire in enemy locations, destroys flammable buildings and structures, warehouses with fuel and lubricants. The variable propelling charge makes it possible to achieve several muzzle velocity values.
TECHNICAL SPECIFICATIONS:
| Caliber, mm | 60 |
|---|---|
| Weight of round, kg | 1,6 |
| Overall length, mm | 310 |
| Propelling charge | Variable (primary + up to 4 increment charges) |
| Weight of smoke generating substance, kg | 0,140 |
| Muzzle velocity, m/s | 223 |
| Maximum firing range, m | 3400 |
| Fuze | М-6 |
